Network Topology
Redundant, Secure & Scalable Campus-Wide Connectivity
0
Gbps Fiber Backbone
0
Distribution Switches
0
Connected Buildings
0
Hostel/Academic Blocks

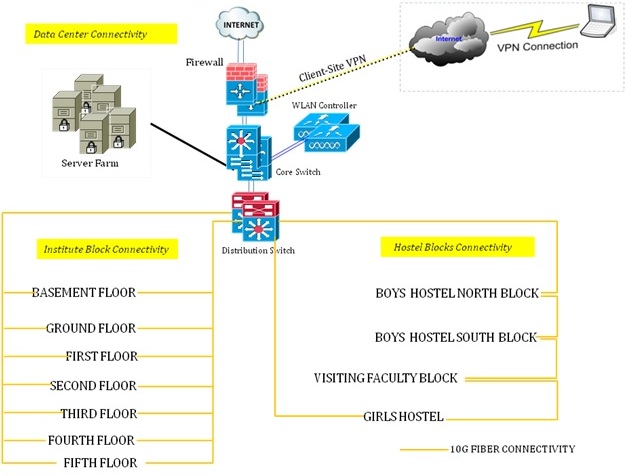

Network Architecture Overview
The Institute network is designed as a highly resilient and secure digital backbone, connecting the Data Center, academic blocks, and all hostel facilities through a 10G Optical Fiber network. The architecture ensures robust internet access, seamless WiFi and wired connectivity, and high-availability for research, learning, and administration.
Firewall-Secured Internet Gateway

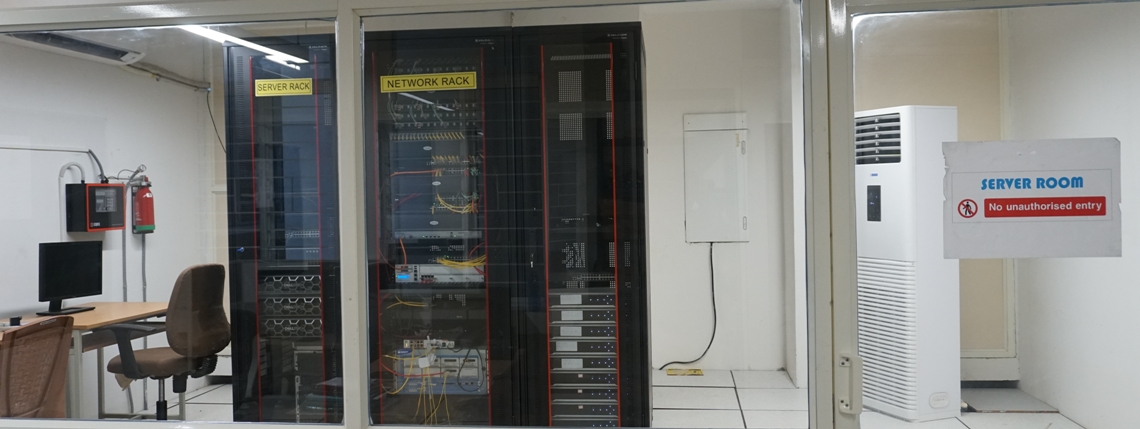

Central Server Farm
Core & Distribution Switches
Multi-Building Fiber Connectivity
Institute & Hostel Block Coverage
VPN Remote Access Support
Campus-wide WLAN Controller
Layer 2/3 Redundant Switching
Hierarchical Topology (Core–Dist–Edge)
Institute Block Connectivity
- Basement, Ground, First–Fifth Floors
Hostel Block Connectivity
- Boys Hostel North & South Blocks
- Girls Hostel
- Visiting Faculty Block
